MODERNE TECHNIK IM LOOK VON GESTERN

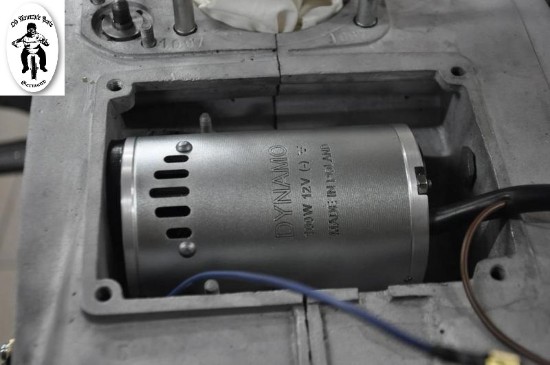

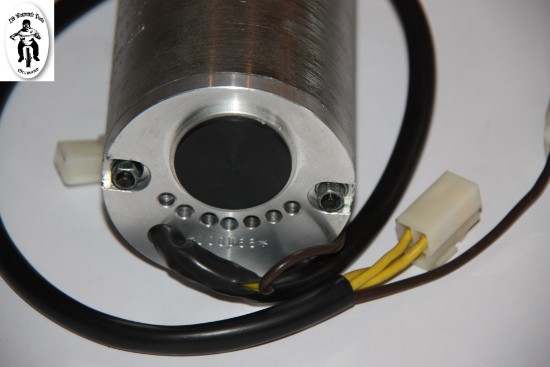

                                       "Dynamo J" - Generator - Alternator 12V/100W






                             The replacement for the original P9a alternator





 Installation options for the following motorcycles:

PRODUCER:                                                                                                                  YEAR:

 SFM JUNAK

- Sfm Junak 350 cm³ "M07"                                                                                          1956 - 1960

- Sfm Junak 350 cm³ "M10"  transition model                                                          1960 - 1961

- Sfm Junak 350 cm³ "M10"                                                                                          1960 - 1965

- Sfm Junak 350 cm³ "B20"                                                                                           1960 - 1965

































Ø Bulks:

Length: 6,89 inch
Width:   2,95 inch

Ø Technical data:

Voltage 12V
3 chamfering Generator
Charging 14,4V without load by 1200 RMP
Charging 14,4V under load 60W  by 2100 RMP
Mass minus ( - )
Electronic controller 12V/250W is tailored for the Dynamo J

Ø Technical requirements:

Battery 12V from 3,2Ah to 14Ah
Mass minus ( - )
Gel battery or acid battery
Headlight 12V - 35/35W or maximum 12V - 55/65W
Parking light front minimum 12V/5W
Low beam rear max. 12V/5W
Stop max. 12V/10W
Speedometer minimum 12V/2W
• Control lamp max. 12V/2W
• Control lamp engine idling max. 12V/2W
Fuse 15A included in the delivery

 Electronic controller is included in delivery !

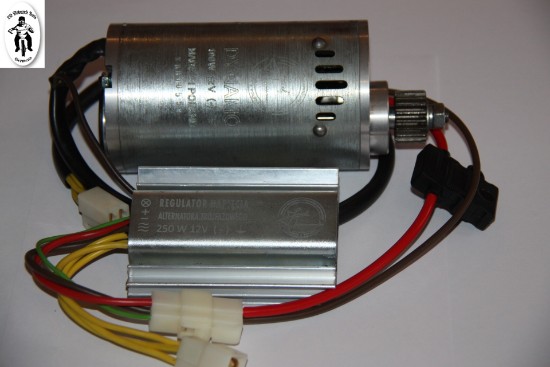

 ► On delivery include:

- Dynamo J
- Electronic controllers

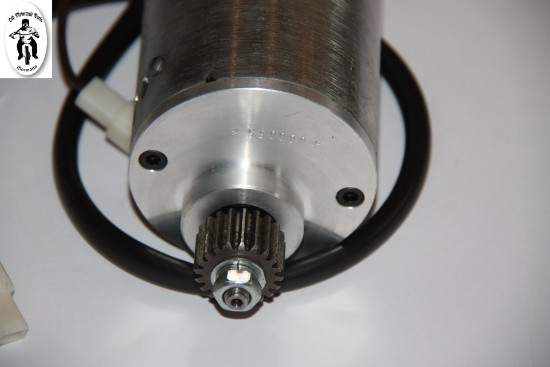

- Gear
- Various connectors
- Fuses
- Rubber seal
- Warranty card
- Operating Instructions
- Packaging


Prices:

Part Number: 00 4821 10J 45  - Dynamo J - 12V/100W - 380,00 €

Part Number: 00 4820 10J 46 - ( reserves ) Electronic controller - 55,00 €

Part Number: 00 4821 10J 45G - ( reserves ) Gear - 38,00 €

Warranty:

2 years manufacturer warranty from date of purchase.


Operating Instructions for downloading.



Betriebsanleitung Dynamo J - Deutsch.pdf
→Download
