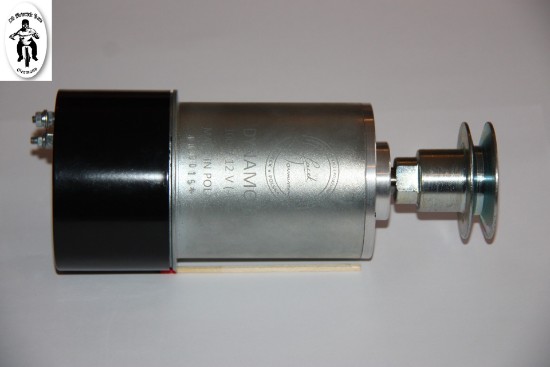

" "Dynamo B" - Generator - Alternator 12V/100W - 150W
The replacement for the original Bosch RD 30-45 alternator

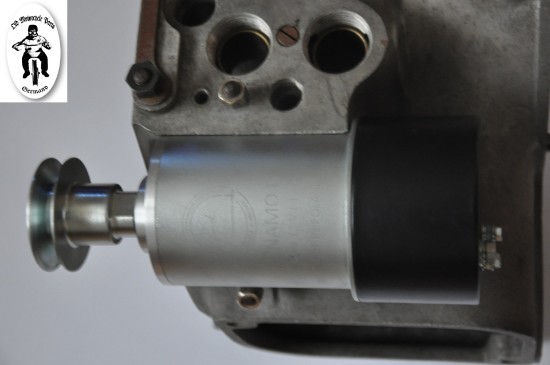

Installation options for the following motorcycles:
PRODUCER: YEAR:
BMW
- BMW 200 cm³ "R2" series 1, 2, 3, 4, 5 1931 - 1936
- BMW 300 cm³ "R3" 1936
- BMW 400 cm³ "R4" from series 4 1934
- BMW 350 cm³ "R35" 1937 - 1940
- EMW 350 cm³ "R35" 1945 - 1955
NSU
- NSU 250 cm³ "251 OSL" post-war model !
MOTO GUZZI
- Moto Guzzi 500 cm³ " Falcone Turismo" 1950 - 1967
- Moto Guzzi 500 cm³ " Falcone Sport " 1950 - 1964
- Moto Guzzi 500 cm³ " Superalce " 1943 - 1955
![](mediapool/145/1452870/resources/big_34093555_0_550-367.JPG)
![](mediapool/145/1452870/resources/big_39942009_0_550-307.jpg)
![](mediapool/145/1452870/resources/big_34093568_0_550-367.JPG)
![](mediapool/145/1452870/resources/big_34093581_0_550-365.JPG)
Ø Bulks:
• Length with sprocket: 7,48 inch
• Width: 2,99 inch
• Width of the rear cover: 3,46 inch
• Rear Cover Height: 2,20 inch
• Cone 6° Grad
Ø Technical data:
• Voltage 12V
• 3 chamfering Generator
• Charging 14,4V without load by 1100 RMP
• Charging 14,4V under load 60W by 1700 RMP
• Mass minus ( - )
• Electronic controller 12V/250W is located under the cover
Ø Technical requirements:
• Battery 12V from 3,2Ah to 14Ah
• Mass minus ( - )
• Ignition coil 12V - a value between 2.7 ohm and 3.5 ohm
• Gel battery or acid battery
• Headlight 12V - 35/45W or maximum 12V - 45/55W
• Parking light front minimum 12V/5W
• Low beam rear max. 12V/5W
• Stop max. 12V/10W
• Speedometer minimum 12V/2W
• Fuse installed under the cover
► On delivery include:
- Dynamo B

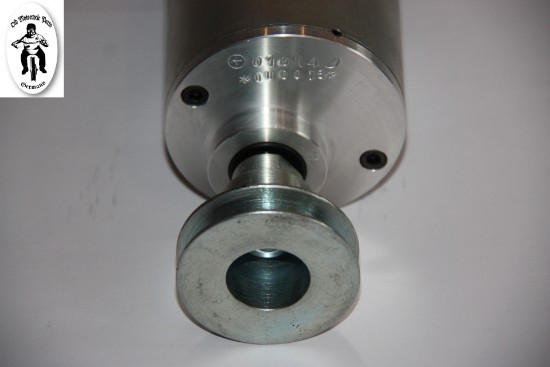

- V-belt pulley
- Electronic controllers
- Fuse installed under the cover
- Warranty card
- Operating Instructions
- Packaging
Prices:
Part Number: 00 2352 07B 10 - Dynamo B - 12V/100W - 430,00 €
Part Number: 00 2350 07B 11 - ( reserves ) Elektronic controller - 70,00 €
Warranty:
2 years manufacturer warranty from date of purchase.
Operating Instructions for downloading.
Deutsch - Betriebsanleitung Dynamo B -- English - Operating Instructions Dynamo B.pdf
→Download
Elektrische Schaltplan - Elektrical Diagram Dynamo B.pdf
→Download
